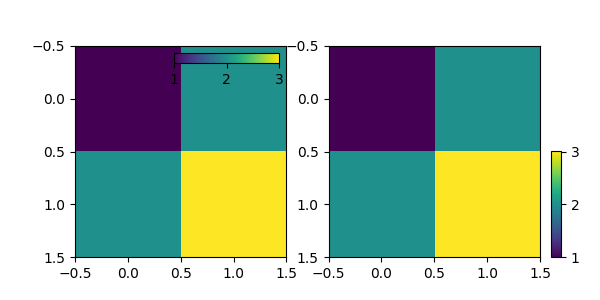

使用插入轴控制颜色条的位置和大小
这个例子展示了如何使用inset_axes
.
插入轴的位置与图例一样控制:通过提供loc 选项(“右上角”、“最佳”、...),或通过提供相对于父 bbox 的定位器。bbox_to_anchor和borderpad等参数的工作方式相同,这里也进行了演示。
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=[6, 3])
im1 = ax1.imshow([[1, 2], [2, 3]])
axins1 = inset_axes(
ax1,
width="50%", # width: 50% of parent_bbox width
height="5%", # height: 5%
loc="upper right",
)
axins1.xaxis.set_ticks_position("bottom")
fig.colorbar(im1, cax=axins1, orientation="horizontal", ticks=[1, 2, 3])
im = ax2.imshow([[1, 2], [2, 3]])
axins = inset_axes(
ax2,
width="5%", # width: 5% of parent_bbox width
height="50%", # height: 50%
loc="lower left",
bbox_to_anchor=(1.05, 0., 1, 1),
bbox_transform=ax2.transAxes,
borderpad=0,
)
fig.colorbar(im, cax=axins, ticks=[1, 2, 3])
plt.show()
