套索演示

展示如何使用套索选择一组点并获取所选点的索引。回调用于更改所选点的颜色

这目前是一个概念验证实现（尽管它可以按原样使用）。API 会有一些改进。

笔记

这个例子练习了 Matplotlib 的交互能力，这不会出现在静态文档中。请在您的机器上运行此代码以查看交互性。

您可以复制和粘贴单个部分，或使用页面底部的链接下载整个示例。

from matplotlib import colors as mcolors, path
from matplotlib.collections import RegularPolyCollection
import matplotlib.pyplot as plt
from matplotlib.widgets import Lasso
import numpy as np


class Datum:
    colorin = mcolors.to_rgba("red")
    colorout = mcolors.to_rgba("blue")

    def __init__(self, x, y, include=False):
        self.x = x
        self.y = y
        if include:
            self.color = self.colorin
        else:
            self.color = self.colorout


class LassoManager:
    def __init__(self, ax, data):
        self.axes = ax
        self.canvas = ax.figure.canvas
        self.data = data

        self.Nxy = len(data)

        facecolors = [d.color for d in data]
        self.xys = [(d.x, d.y) for d in data]
        self.collection = RegularPolyCollection(
            6, sizes=(100,),
            facecolors=facecolors,
            offsets=self.xys,
            offset_transform=ax.transData)

        ax.add_collection(self.collection)

        self.cid = self.canvas.mpl_connect('button_press_event', self.on_press)

    def callback(self, verts):
        facecolors = self.collection.get_facecolors()
        p = path.Path(verts)
        ind = p.contains_points(self.xys)
        for i in range(len(self.xys)):
            if ind[i]:
                facecolors[i] = Datum.colorin
            else:
                facecolors[i] = Datum.colorout

        self.canvas.draw_idle()
        self.canvas.widgetlock.release(self.lasso)
        del self.lasso

    def on_press(self, event):
        if self.canvas.widgetlock.locked():
            return
        if event.inaxes is None:
            return
        self.lasso = Lasso(event.inaxes,
                           (event.xdata, event.ydata),
                           self.callback)
        # acquire a lock on the widget drawing
        self.canvas.widgetlock(self.lasso)


if __name__ == '__main__':

    np.random.seed(19680801)

    data = [Datum(*xy) for xy in np.random.rand(100, 2)]
    ax = plt.axes(xlim=(0, 1), ylim=(0, 1), autoscale_on=False)

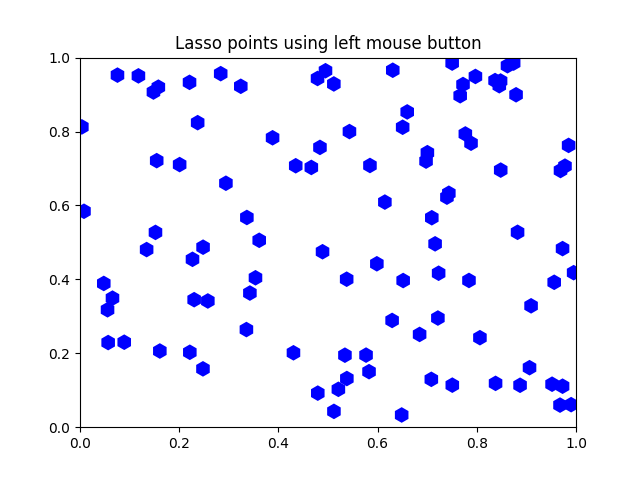

    ax.set_title('Lasso points using left mouse button')

    lman = LassoManager(ax, data)

    plt.show()
