检查按钮

使用复选按钮打开和关闭视觉元素。

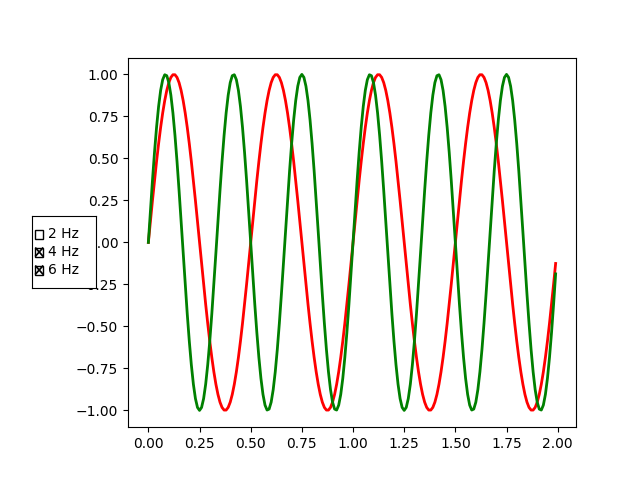

该程序显示了类似于复选框的“检查按钮”的使用。显示了 3 种不同的正弦波，我们可以使用复选按钮选择显示哪些波。

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.widgets import CheckButtons

t = np.arange(0.0, 2.0, 0.01)
s0 = np.sin(2*np.pi*t)
s1 = np.sin(4*np.pi*t)
s2 = np.sin(6*np.pi*t)

fig, ax = plt.subplots()
l0, = ax.plot(t, s0, visible=False, lw=2, color='k', label='2 Hz')
l1, = ax.plot(t, s1, lw=2, color='r', label='4 Hz')
l2, = ax.plot(t, s2, lw=2, color='g', label='6 Hz')
fig.subplots_adjust(left=0.2)

lines = [l0, l1, l2]

# Make checkbuttons with all plotted lines with correct visibility
rax = fig.add_axes([0.05, 0.4, 0.1, 0.15])
labels = [str(line.get_label()) for line in lines]
visibility = [line.get_visible() for line in lines]
check = CheckButtons(rax, labels, visibility)


def func(label):
    index = labels.index(label)
    lines[index].set_visible(not lines[index].get_visible())
    plt.draw()

check.on_clicked(func)

plt.show()

参考

此示例中显示了以下函数、方法、类和模块的使用：

• matplotlib.widgets.CheckButtons
