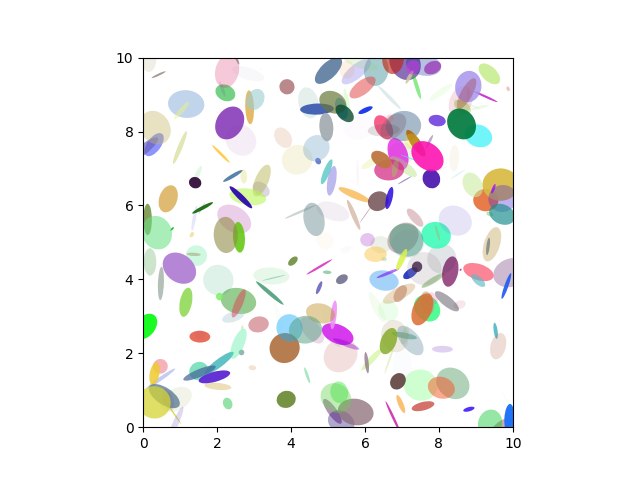

椭圆演示#

画很多椭圆。这里绘制了单个椭圆。将此与Ellipse 集合示例进行比较。

import matplotlib.pyplot as plt
import numpy as np
from matplotlib.patches import Ellipse


# Fixing random state for reproducibility
np.random.seed(19680801)

NUM = 250

ells = [Ellipse(xy=np.random.rand(2) * 10,
                width=np.random.rand(), height=np.random.rand(),
                angle=np.random.rand() * 360)
        for i in range(NUM)]

fig, ax = plt.subplots(subplot_kw={'aspect': 'equal'})
for e in ells:
    ax.add_artist(e)
    e.set_clip_box(ax.bbox)
    e.set_alpha(np.random.rand())
    e.set_facecolor(np.random.rand(3))

ax.set_xlim(0, 10)
ax.set_ylim(0, 10)

plt.show()
椭圆演示

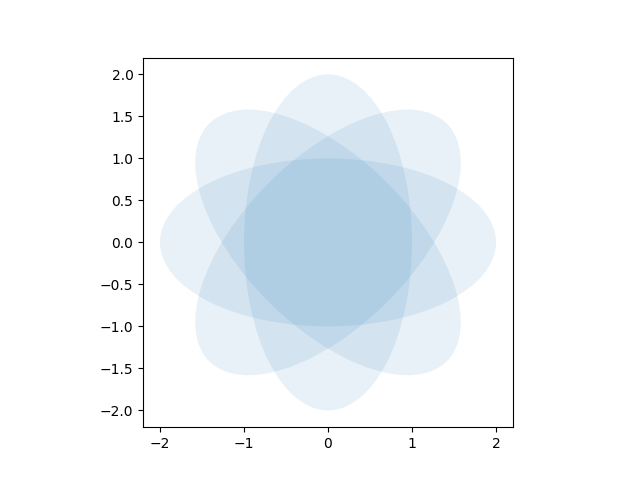

椭圆旋转#

画出许多不同角度的椭圆。

angle_step = 45  # degrees
angles = np.arange(0, 180, angle_step)

fig, ax = plt.subplots(subplot_kw={'aspect': 'equal'})

for angle in angles:
    ellipse = Ellipse((0, 0), 4, 2, angle=angle, alpha=0.1)
    ax.add_artist(ellipse)

ax.set_xlim(-2.2, 2.2)
ax.set_ylim(-2.2, 2.2)

plt.show()
椭圆演示
