艺术家中的艺术家#

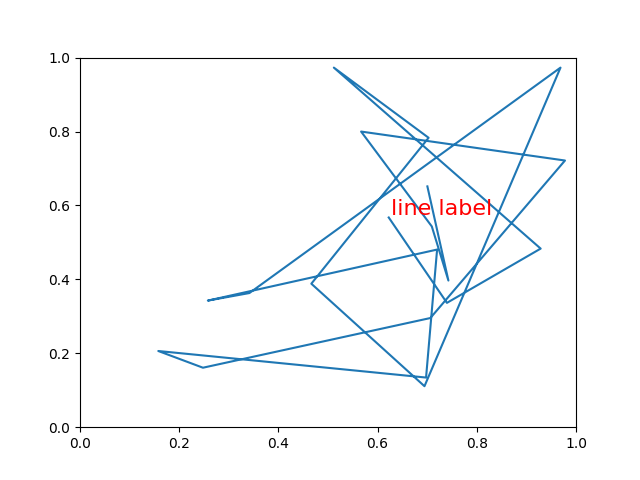

覆盖基本方法，以便艺术家可以包含另一位艺术家。在这种情况下，该行包含一个 Text 实例来标记它。
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.lines as lines
import matplotlib.transforms as mtransforms
import matplotlib.text as mtext
class MyLine(lines.Line2D):
def __init__(self, *args, **kwargs):
# we'll update the position when the line data is set
self.text = mtext.Text(0, 0, '')
super().__init__(*args, **kwargs)
# we can't access the label attr until *after* the line is
# initiated
self.text.set_text(self.get_label())
def set_figure(self, figure):
self.text.set_figure(figure)
super().set_figure(figure)
def set_axes(self, axes):
self.text.set_axes(axes)
super().set_axes(axes)
def set_transform(self, transform):
# 2 pixel offset
texttrans = transform + mtransforms.Affine2D().translate(2, 2)
self.text.set_transform(texttrans)
super().set_transform(transform)
def set_data(self, x, y):
if len(x):
self.text.set_position((x[-1], y[-1]))
super().set_data(x, y)
def draw(self, renderer):
# draw my label at the end of the line with 2 pixel offset
super().draw(renderer)
self.text.draw(renderer)
# Fixing random state for reproducibility
np.random.seed(19680801)
fig, ax = plt.subplots()
x, y = np.random.rand(2, 20)
line = MyLine(x, y, mfc='red', ms=12, label='line label')
line.text.set_color('red')
line.text.set_fontsize(16)
ax.add_line(line)
plt.show()
参考
此示例中显示了以下函数、方法、类和模块的使用：
