文字旋转模式

此示例说明 对rotation_mode旋转文本定位的影响。

旋转Text的 s 是通过将参数传递rotation给构造函数或轴的方法来创建的text。

实际定位取决于附加 参数horizontalalignment和。 确定旋转和对齐的顺序：verticalalignmentrotation_moderotation_mode

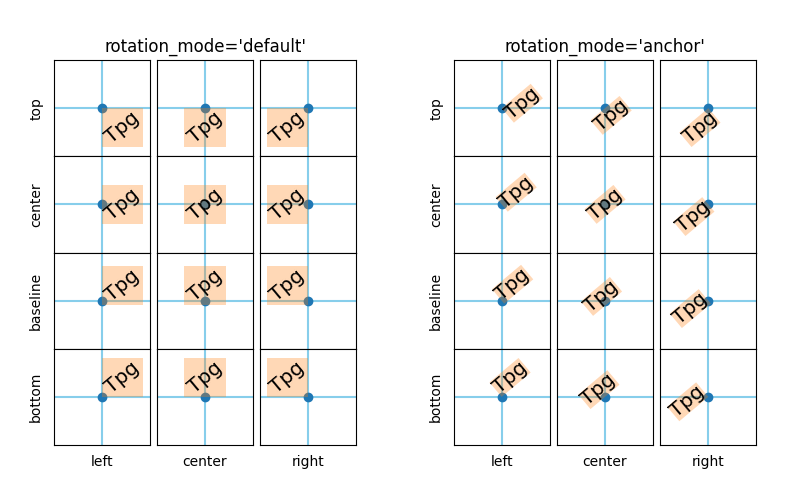

• rotation_mode='default'（或无）首先旋转文本，然后对齐旋转文本的边界框。

• rotation_mode='anchor'对齐未旋转的文本，然后围绕对齐点旋转文本。

import matplotlib.pyplot as plt


def test_rotation_mode(fig, mode):
    ha_list = ["left", "center", "right"]
    va_list = ["top", "center", "baseline", "bottom"]
    axs = fig.subplots(len(va_list), len(ha_list), sharex=True, sharey=True,
                       subplot_kw=dict(aspect=1),
                       gridspec_kw=dict(hspace=0, wspace=0))

    # labels and title
    for ha, ax in zip(ha_list, axs[-1, :]):
        ax.set_xlabel(ha)
    for va, ax in zip(va_list, axs[:, 0]):
        ax.set_ylabel(va)
    axs[0, 1].set_title(f"rotation_mode='{mode}'", size="large")

    kw = (
        {} if mode == "default" else
        {"bbox": dict(boxstyle="square,pad=0.", ec="none", fc="C1", alpha=0.3)}
    )

    texts = {}

    # use a different text alignment in each axes
    for i, va in enumerate(va_list):
        for j, ha in enumerate(ha_list):
            ax = axs[i, j]
            # prepare axes layout
            ax.set(xticks=[], yticks=[])
            ax.axvline(0.5, color="skyblue", zorder=0)
            ax.axhline(0.5, color="skyblue", zorder=0)
            ax.plot(0.5, 0.5, color="C0", marker="o", zorder=1)
            # add text with rotation and alignment settings
            tx = ax.text(0.5, 0.5, "Tpg",
                         size="x-large", rotation=40,
                         horizontalalignment=ha, verticalalignment=va,
                         rotation_mode=mode, **kw)
            texts[ax] = tx

    if mode == "default":
        # highlight bbox
        fig.canvas.draw()
        for ax, text in texts.items():
            bb = text.get_window_extent().transformed(ax.transData.inverted())
            rect = plt.Rectangle((bb.x0, bb.y0), bb.width, bb.height,
                                 facecolor="C1", alpha=0.3, zorder=2)
            ax.add_patch(rect)


fig = plt.figure(figsize=(8, 5))
subfigs = fig.subfigures(1, 2)
test_rotation_mode(subfigs[0], "default")
test_rotation_mode(subfigs[1], "anchor")
plt.show()

参考

此示例中显示了以下函数、方法、类和模块的使用：

• matplotlib.axes.Axes.text/matplotlib.pyplot.text
