多边形选择器

展示如何以编程方式或交互方式创建多边形

import matplotlib.pyplot as plt
from matplotlib.widgets import PolygonSelector

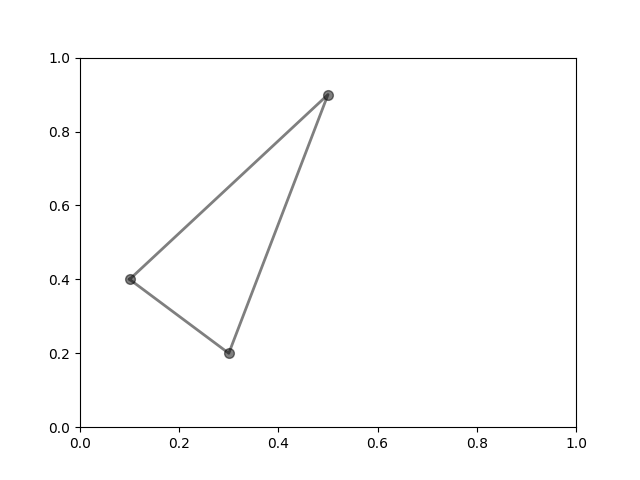

以编程方式创建多边形

fig, ax = plt.subplots()
fig.show()

selector = PolygonSelector(ax, lambda *args: None)

# Add three vertices
selector.verts = [(0.1, 0.4), (0.5, 0.9), (0.3, 0.2)]

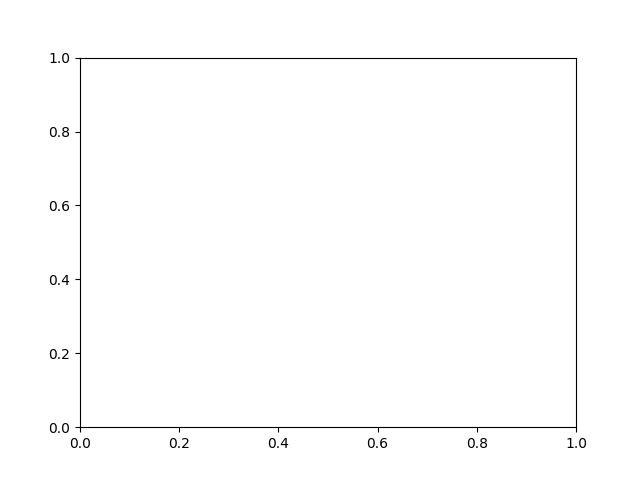

以交互方式创建多边形

fig2, ax2 = plt.subplots()
fig2.show()

selector2 = PolygonSelector(ax2, lambda *args: None)

print("Click on the figure to create a polygon.")
print("Press the 'esc' key to start a new polygon.")
print("Try holding the 'shift' key to move all of the vertices.")
print("Try holding the 'ctrl' key to move a single vertex.")

Click on the figure to create a polygon.
Press the 'esc' key to start a new polygon.
Try holding the 'shift' key to move all of the vertices.
Try holding the 'ctrl' key to move a single vertex.

参考

此示例中显示了以下函数、方法、类和模块的使用：

• matplotlib.widgets.PolygonSelector
